SFFECO
SFFECO is an ISO9001 certified manufacturing company by BRE Global Ltd. of UK is a market leader and specialize in manufacturing of fire-fighting equipment in the world.
SFFECO is represented globally in over 100 countries worldwide with its highly knit distributor and dealer network.
SFFECO with its innovative approach provides the entire gamut of products that caters to the needs of the Fire Protection and Fire Fighting industry. This makes SFFECO a one-stop-shop for customers, fulfilling their end-to-end needs in products, solutions and services for the industry. SFFECO continually expands upon its knowledge and services to keep its clients updated with the latest Fire Fighting Technology in the world. The product range manufactured by SFFECO confirms and holds approval to international standards.
SFFECO Semi Rigid Fire Fighting Hose is designed and manufactured in compliance with BS EN-694:2014 standard.
The hose is doble layered with red cover and black lining. SFFECO Fire Fighting hose is suitable to use with fixed fire fighting systems like fire hose reels. It's flexibility helps to roll or handle the hoe easily.
Material used for inner lining and cover of hose is plasticized PVC compound and high tensile textile polyester yarn is used for reinforcement of hose.
Model | Size | classification |
SH19R
|
19mm
|
Type A, Class 2
|
SH25R
| 25mm | Type A, Class 2 |
Hose color is Red.
Hose length is 30 meter.
Maximum working pressure is 12 bar.
Proof pressure is 24 bar.
Minimum burst pressure is 42 bar.
Temperature range is -20°C to +60°C at ambient temperature condition in non aggressive or non-corrosive atmosphere.
SFFECO Fire Hose Angle Valves (90° Pattern) are for use on standpipe having inlet and outlet opening of the same size or with the inlet larger than outlet. The valve is made in accordance with UL668 Hose Valve for Fire Protection Service Standards.
SFFECO UL Listed Single and Double Jacket Fire Hoses are lined with a high tech EPDM tube whose engineered design guarantees minimum weight with maximum durability and flexibility.
SFFECO UL Listed Adjustable type Nozzles are used for Class A and B fires in most industrial applications. They are used with lined fire hose.
The Fire Hose Reels are designed and manufactured as per BS EN671 – 1. Hose reel discs are made of 1.2mm pre-treated electro-galvanized steel sheet, painted with electrostatic powder coating and oven baked at 200°C. Hose reel side plates are protected with a polyester powder coating that complies to salt spray test requirement which is specified in ISO 9227 for 240 hrs.
Hose reel drum has formation of hydraulically pressed ribs to give extra strength and to avoid twisting. The outer edges are rolled over to give a safe handling edge on the outer rims and better appearance.
Automatic fire hose reels are available with an internal valve built into the hose reel unit which opens within 3 revolutions of the hose reel as the hose is pulled out and closes when the hose is wound back to the reel.
Model | Manual | Automatic |
Fixed Type
| SF30 F-19 SF30 F-25 | SF30 A-F-19 SF30 A-F-25 |
Swinging Pipe Type
| SF30 SP-19 SF30 SP-25 | SF30 A-SP-19 SF30 A-SP-25 |
Swinging Arm Type
| SF30 SA-19 SF30 SA-25 | SF30 A-SA-19 SF30 A-SA-25 |
Fire Rated Cabinets
SFFECO Fire Rated Fire Hose Cabinets are designed to specifically maintain the integrity of two hours fire walls with all our recessed and surface cabinets. SFFECO has certified and listed these cabinets for combustible and noncombustible wall systems to meet the requirements of UL R-39545. The fire rated option assures the specifier that life safety codes will be maintained and by eliminating the need to continue the fire wall within the rough opening, saves the installer considerable time and expensive.
SFFECO Fire Rated Cabinets have been manufactured with Red painted Mild Steel, Hairline, Mirror or Brush finish for Stainless Steel (304 or 316)
| Model | Width | Height | Depth |
|---|---|---|---|
| SF300 | 800 | 800 | 230 |
| SF300S | 800 | 800 | 250 |
| SF300A | 800 | 800 | 250 |
| SF300AS | 800 | 800 | 250 |
| SF305/20 | 700 | 700 | 200 |
| SF305/30 | 700 | 700 | 250 |
| SF305A | 700 | 700 | 250 |
| SF305AS | 700 | 700 | 250 |
| SF600 | 1050 | 800 | 230 |
| SF600S | 1050 | 800 | 230 |
| SF600A | 1050 | 800 | 250 |
| SF600AS | 1050 | 800 | 250 |
Fire Hose Reel and Cabinets
SFFECO Fire Hose Reel Cabinet model SF300 and SF600 series are manufactured from steel or stainless steel, with thickness of 1 mm to 2 mm. Outer edges of hose reels are rolled over for safe handling and aesthetic appearance. Cabinet door handles are of stainless steel and turn handle chrome plated.
Hose Reel Drums pressed on hydraulic press to form ribs for strength and durability to avoid twisting while handling.
Electrostatic powder painted and oven baked to 200°C for appearance and protection from rust.
Cabinets can be surface mounted, recessed or semi-recessed. Cabinets of stainless steel also available with hairline or mirror finish.
- All Dimensions are in mm.
- S: Stainless Steel Frame Door, Optional: Full Stainless Steel.
- E: Extinguisher
- V: Extra Valve
Fire Hose Rack and Cabinets
SFFECO Fire Hose Rack Cabinet model SFR150, SFR200 series are manufactured from steel or stainless steel, with thickness of 1 mm to 2 mm. Cabinet door handles are of stainless steel and turn handle chrome plated.
Electrostatic powder painted and oven baked to 200°C for appearance and protection from rust.
Cabinets can be surface mounted, recessed or semi-recessed. Cabinets of stainless steel also available with hairline or mirror finish.
| Model | Width | Height | Depth |
|---|---|---|---|
| SFR150 | 650 | 850 | 160 |
| SFR150S | 650 | 850 | 160 |
| SFR200E | 750 | 850 | 180 |
| SFR200ES | 750 | 850 | 180 |
| SFR200EV | 750 | 940 | 200 |
| SFR200EVS | 750 | 940 | 200 |
Synthetic Hose Reel and Cabinets
SFFECO Hose Reel cabinet model SF4000, SF5000 series characterised for its high quality and performance in fighting fire, can be used effectively in factories, residential building, etc.
Hose reel is made of 1 mm steel sheet and pressed out. The outer edge of the reel is rolled over to give a safe handling edge on the outer rims. The reel is mounted on swinging arm.
Hose lenght is 30 meter long with 1.5"ø or 2.5"ø, Landing Valve 1.5" for SF4000 and 2.5" for SF5000
| Model | Width | Height | Depth |
|---|---|---|---|
| SF4000 | 65 cm | 65 cm | 15 cm |
| SF5000 | 65 cm | 65 cm | 19 cm |
Synthetic Hose Reel and Extinguisher Cabinets
SFFECO Hose Reel and Extinguisher cabinet 1.5" size model SF4200 and 2.5" size model SF5200 are characterized for its high quality and performance in fighting fire and can be used effectively in factories, residential buildings, schools, etc.
Hose reel is made of 1 mm steel sheet and pressed out. The outer edge of the reel is rolled over to give a safe handling edge on the outer rims. The reel is mounted on swinging arm.
| Model | Width | Height | Depth |
|---|---|---|---|
| SF4200 | 90 cm | 65 cm | 18 cm |
| SF4400 | 85 cm | 65 cm | 18 cm |
| SF4600 | 85 cm | 90 cm | 22 cm |
| SF5200 | 90 cm | 65 cm | 19 cm |
| SF5400 | 85 cm | 65 cm | 19 cm |
| SF5600 | 85 cm | 90 cm | 22 cm |
Customized Cabinets
SFFECO Fire Cabinets model SF900 and SF900A are made with steel or stainless stee, with thickness of 1mm to 2mm.
Hose Reel Drums pressed on hydraulic press to form ribs for strength and durability to avoid twisting while handling. Outer edges of hose reels are rolled over for safe handling and aesthetic apperance. Cabinet door handles are of stainless steel and turn handle chrome plated.
Electrostatic powder painted and oven baked to 200°C for apperance and protection from rust.
Cabinets can be surface mounted, recessed or semi-recessed. Cabinets of stainless steel also available with hairline or mirror finish.
Foam / Water Cabinets
SFFECO Foam or Water cabinet model SF9000 characterized for its high performance for attacking class A, B fire within seconds. Suitable for gas stations, petro-chemical plants, industrial premises, warehouse and in any areas, requires protection from class A, B fires.
Cabinetsa are manufactured from steel or stainless steel, with thickness of 1 mm to 2 mm. Cabinets are with all around folded edges without any sharp edges. The roof is slop type
Electrostatic powder painted and oven baked to 200°C for apperance and protection from rust.
Fire Extinguisher Cabinets
SFFECO Fire Extinguisher Cabinets are made of mild or stainless steel sheet with all around folded edges. There are different design for door leaves to suit the architectural engineering.
Cabinets are fitted with continuous piano hinges. Stainless steel hinges are available upon request.
Corrosion protection: Cabinets and door leaves are painted with electrostatic powder paint oven baked to give protection against rust and to give smooth finish.
Fire Hydrants
SFFECO sees hydrants as a critical fire fighting product, which needs to serve its purpose without fail. Designed built and tested for dependability.
SFFECO fire hydrants are generally made in cast iron and in ductile iron too as per customer’s demand. SFFECO Fire Hydrants are used in commercial centers, colleges, hospitals, shopping malls, etc.
SFFECO Fire Hydrants, which are designed to be weatherproof, are normally equipped with hoses, hose nozzles, hydrant wrenches, spanner wrenches, fie axes, and flashing light, torch, etc as per customer’s requirements.
- SFFECO has UL/FM Dry barrel fire hydrant model SF-F-06 provides smooth and optimum performance with highest quality.
- SFFECO Wet Barrel Fire Hydrant model SFD-250-WH is UL/FM approved.
- SFFECO has LPCB approved models of Dry Pillar Fire Hydrants
SFFECO Fire Pumps (UL / FM / SASO Approved)
SFFECO Fire Pumps are essential components in any fire safety system. These pumps are designed to ensure fast and reliable delivery of water to fire sprinkler systems and fire hydrants in the event of a fire. SFFECO designs and custom-builds a wide range of fire pump systems that meet every fire protection need, to protect lives and properties throughout changing climatic conditions and weather events. SFFECO fire pumps have been tested in the field so that it will perform perfectly and provides real value and reliability. SFFECO brings its technical expertise to the industry to improve fire protection systems globally.
SFFECO manufactures packaged fire pumps that are self-contained units with the electric motor, diesel engine, pump, control panel, etc. in a single unit. They are easy to install and maintain, making them popular in residential and small commercial projects. The main components of SFFECO fire pump packages are Horizontal Split Case Pumps (UL/FM/SASO), End Suction Pumps (UL/FM/SASO), Control Panel, Fuel Tank, etc.
SFFECO provides Vertical Multi Stage Pumps (UL/FM/SASO), which are designed specifically for high-rise buildings.
The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers(Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
Black Stallion Diesel Engines - UL Listed / FM Approved
STALLION Diesel Fire Engines are product of many years of research and development. The resulting know-how coupled with stringent quality standards, guarantee their long service life, high reliability and low fuel consumption. As a result, STALLION Diesel Fire Engines meet the highest standards for environmental protection.

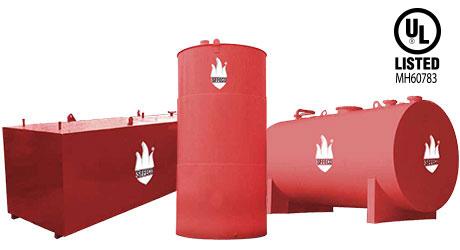

Fuel Tank - UL Listed
SFFECO offers a wide range of customized local solution for aboveground fuel and stable flammable liquids and combustible liquids storage tanks which is suitable for Aviation, Industrial, oil & gas, power sector, service stations, in fire pump diesel engine applications etc. with superior strength, performance, durability and reliability. The tanks designed and built as per UL-142 with a wide variety of tanks available to meet customer‘s specifications.
General Features
- Space Saving Design Efficiency:
- Nothing beat Excel Series packages since allows to fit in to small spaces. Easy to Install and Handle:
- Available in capacities from 50 GPM up to 1500 GPM and pressure range up to 12 BAR.
- Pre- fabricated, pre-piped wired, factory tested unit.
- In compliances with local civil defense requirement and NFPA 20 selection and operation procedure.
- Pumps coupled with heavy duty trouble free electrical and diesel drivers.
- Dynamic balanced pumps impellers.
- Pump set piping is hydrostatically tested to ensure piping integrity.
The Standard Models of “Excel Series” are
- EDJ: Electrical Diesel Jockey
- DJ: Diesel Jockey
- EJ: Electrical Jockey
Excel Series Fire Pumps - SASO Approved
Being local specialist manufacture gives SFFECO the opportunity and privilege to develop an innovative pump assembly units, and tailor pump packages to clients’ specific needs, moreover SFFECO has assured supplying pump units comply with local and international authority requirements, as well as NFPA - 20 selection and operation procedures. SFFECO Excel series pumps are SASO approved.
Our developed technology assures that the Excel Series Pre-Fabricated Fire Pump Skids provide Compact Design Pump Sets that are easy to handle, install, and maintain, as all pumping elements, drivers, controllers, and pre-piping are mounted on skids, wired, and factory tested.
Excel Series standard packages included wide variety of fire pump units start from 50 GPM size up to 1500 GPM, with pressure range from 6 bars up to 14 bars. This wide range of pumping and head characteristics has made excel series suitable in various market sectors such as; government buildings, commercial and residential towers, ware houses, factories etc.
Excel Series is the right Choice for most of the Fire Fighting Applications like:
Fire Hose Cabinet Systems, Automatic Sprinkler Systems, Deluge Systems, Fire Hydrant Systems, Foam Systems, etc.
General Features
- Space Saving Design Efficiency:
- Nothing beat Excel Series II packages since allows to fit in to small spaces. Easy to Install and Handle:
- Available in capacities from 50 GPM up to 1500 GPM and pressure range up to 12 BAR.
- Pre- fabricated, pre-piped wired, factory tested unit.
- In compliances with local civil defense requirement and NFPA 20 selection and operation procedure.
- Pumps coupled with heavy duty trouble free electrical and diesel drivers.
- Dynamic balanced pumps impellers.
- Pump set piping is hydrostatically tested to ensure piping integrity.
The Standard Models of “Excel Series” are
- EDJ: Electrical Diesel Jockey
- DJ: Diesel Jockey
- EJ: Electrical Jockey
Other specifications are also available as per customer request.
Excel Series II Fire Pumps - SASO Approved
SFFECO Excel Series II Fire Pumps are pre-fabricated skids, where this developed technology assures providing Compact Design Pump Sets, Easily Handled, Installed, & Maintained, where all Pumping Elements, Drivers, & Controllers are all skid mounted, Pre-piped, Wired, & Factory tested.
Excel Series II Pump control panels feature a human machine interface. The HMI Controller is a tool that will help the pump operators to visualize and monitor the process, provide control targets and set-points, execute programs and initiate sequences, and troubleshoot problems via alarms, and events.
SFFECO Excel Series II Fire Pumps are Standard Packages start from 50 GPM size up to 1500 GPM, with pressure range from 6 bars up to 14 bars. This wide Range of Pumping & Head Characteristics has made Excel Series II suitable in various market sectors such as; Government Buildings, Commercial & Residential Towers, Ware houses, Factories etc.
The HMI Controller is a tool that will help the pump operators to visualize and monitor the process, provide control targets and set-points, execute programs and initiate sequences, and troubleshoot problems via alarms, and events.
The HMI touch screen control panel for a fire pump is designed to provide a user-friendly interface for the control and monitoring of the fire pump system. This control panel offers a user-friendly experience, allowing operators to efficiently control and monitor the fire pump system's status. Its advanced features, including real-time monitoring, automatic control, and communication integration, enhance efficiency and safety in fire suppression and emergency response applications.
SFFECO Pre-Packaged Pump House
Your ultimate solution for fire safety!
The high-quality construction and state-of-the-art design make the SFFECO Pre Packaged Pump House the ideal fire pump housing.
Designed with robust construction and meticulous engineering, this pump enclosure protects the fire pump and other components from external elements and damage.
As well as protecting, this unit also helps to organize the pump and components properly and makes them easier to access when needed.
This unit can be made in various sizes and designs as per customers’ requirement.
All internal wiring and piping is done at the factory and external connectors are provided on the outer surface of the enclosure that enables easy piping and power connection at the field.
Complete fire pump set assembly is fixed inside a pump house enclosure with all fire pump related standard accessories, valves and fittings and pump testing instruments as required.
The pump house also can be provided with lighting, heat detectors, extinguishers, etc. as additional accessories upon customer request.
UL Listed Foam Concentrates
SFFECO is a manufacturer for Foam concentrates. Our UL Listed Foam Concentrates represents a major advancement in foam technology for effective extinguishment of class A and class B fires, as low and Medium expansion foam. It can be used with standard and conventional low / medium expansion foam making equipments with fresh / sea / brackish water, either as a solution or through foam induction systems. This unique quality makes it suitable for use in special applications like crash Tenders / Monitors / Foam chambers Air-aspirating and nonaspirating sprinkler heads or spray nozzles / Air-aspirating foam nozzles/portable foam Extinguishers etc. It applied into fixed water spray or sprinkler installations for protection of stores, ware-houses, tanker loading areas and other local risks involving a spilled fuel fire, has been found extremely effective. Various crude oils, gasoline, diesels fuels, aviation fuels, etc. its excellent wetting characteristics make it suitable in combating class A fires as well. It can be used with dry chemical extinguishing agents without regard to the order of application to provide even greater fire protection capability.
Fire Doors and Frames
As part of our continuous strive for innovation, SFFECO has launched its world class fire resisting doors and frames operation. The fire doors and frames are manufactured in a totally automated plant which employs computer numerical controlled (CNC) machines and thus ensures uniform quality and superb finish.
SFFECO fire doors are manufactured to comply with various architectural requirements.
These doors are designed for areas where strength, stability and durability are priority. Typical applications include entrances to industrial premises, to shops service doors, to basements, to stairs wells and to elevator shafts. They are also widely used as dividing or external doors in electrical and petrochemical plants.
Door or Frame can be made with cold rolled steel, galvanized steel or in stainless steel. Doors can be used in dry wall and masonry construction
Landing Valves and Dry or Wet Riser Equipment
SFFECO landing vales are manufactured strictly to relevant British Standards. They can be used in multi-story buildings where a fire fighting system should be available for fire brigade use.
Kitemark Approved Landing Valves and Breaching Inlets are available.
